Breathe easy. Print better.
The VentCore is a purpose-built filtration, heating, and cooling system designed specifically for the Snapmaker U1 and compatible printers. It keeps your ambient air clean, your print chamber warm, and your motherboard cool, controlled via Klipper, with zero permanent modifications to your machine.
Why VentCore?
-
Cleaner Air: High-efficiency HEPA filtration combined with an activated charcoal chamber scrubs harmful VOCs and ultra-fine particles (UFPs) generated during printing.
-
Better Prints, Less Warping: Maintains a consistent chamber temperature to drastically reduce warping and improve layer adhesion when printing engineering filaments like ABS, ASA, and Nylon.
-
Longer Printer Life: A dedicated external cooling fan targets the motherboard, preventing heat creep and reducing wear on critical electronics over time.
-
Automated: Klipper integration activates and deactivates the system based on your nozzle temperature. Set it once and forget it.
-
Open-Source & Customisable: Includes full STEP files and Klipper configuration macros so you can adapt, remix, and tune every part to your specific setup.
-
Clean, Plug-and-Play Integration: All three modules pull control/power via the printer’s existing 6-pin port (with a separate dedicated supply for the heater). No permanent wiring cuts or splices required.
Technical Specifications

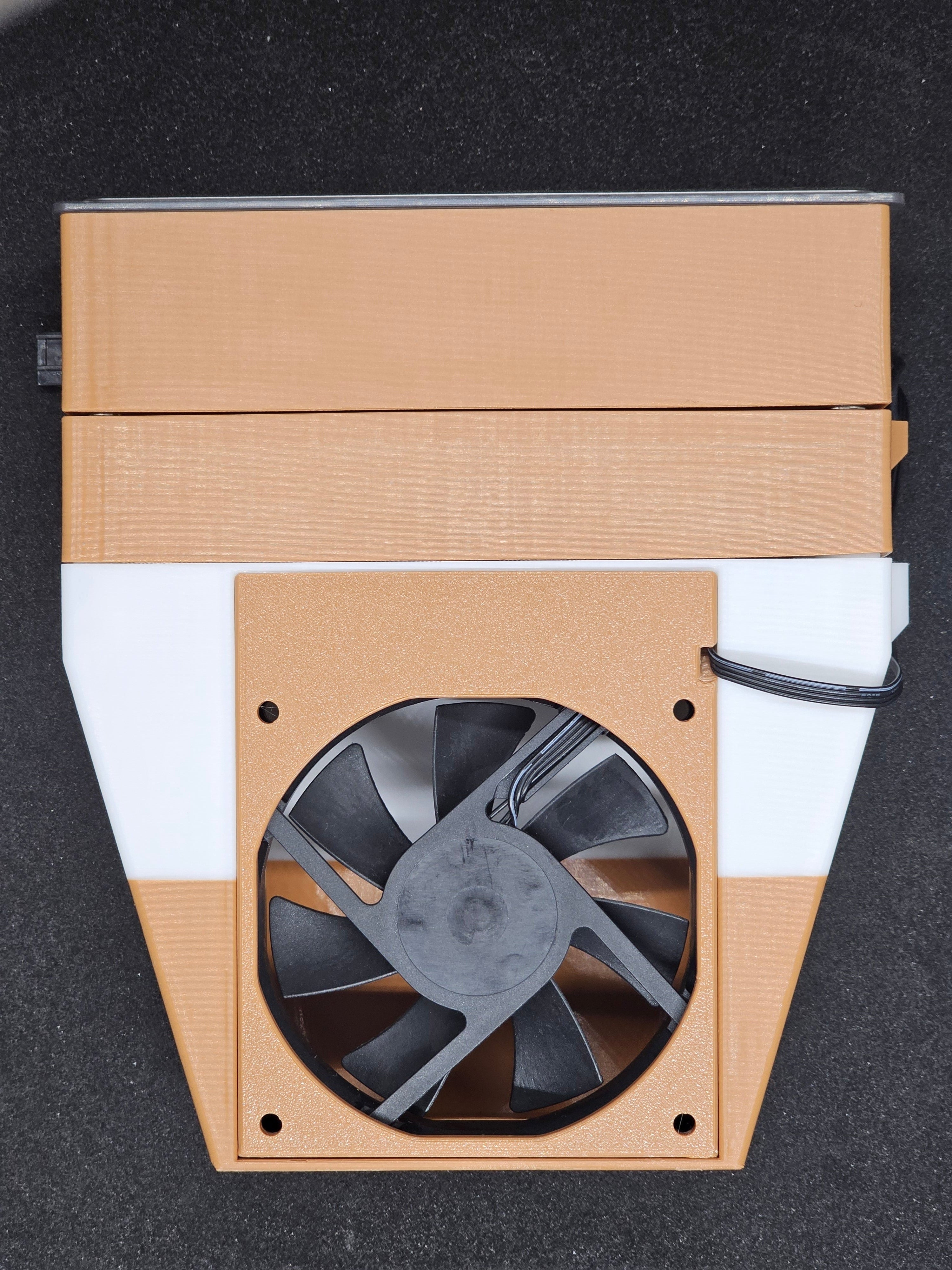

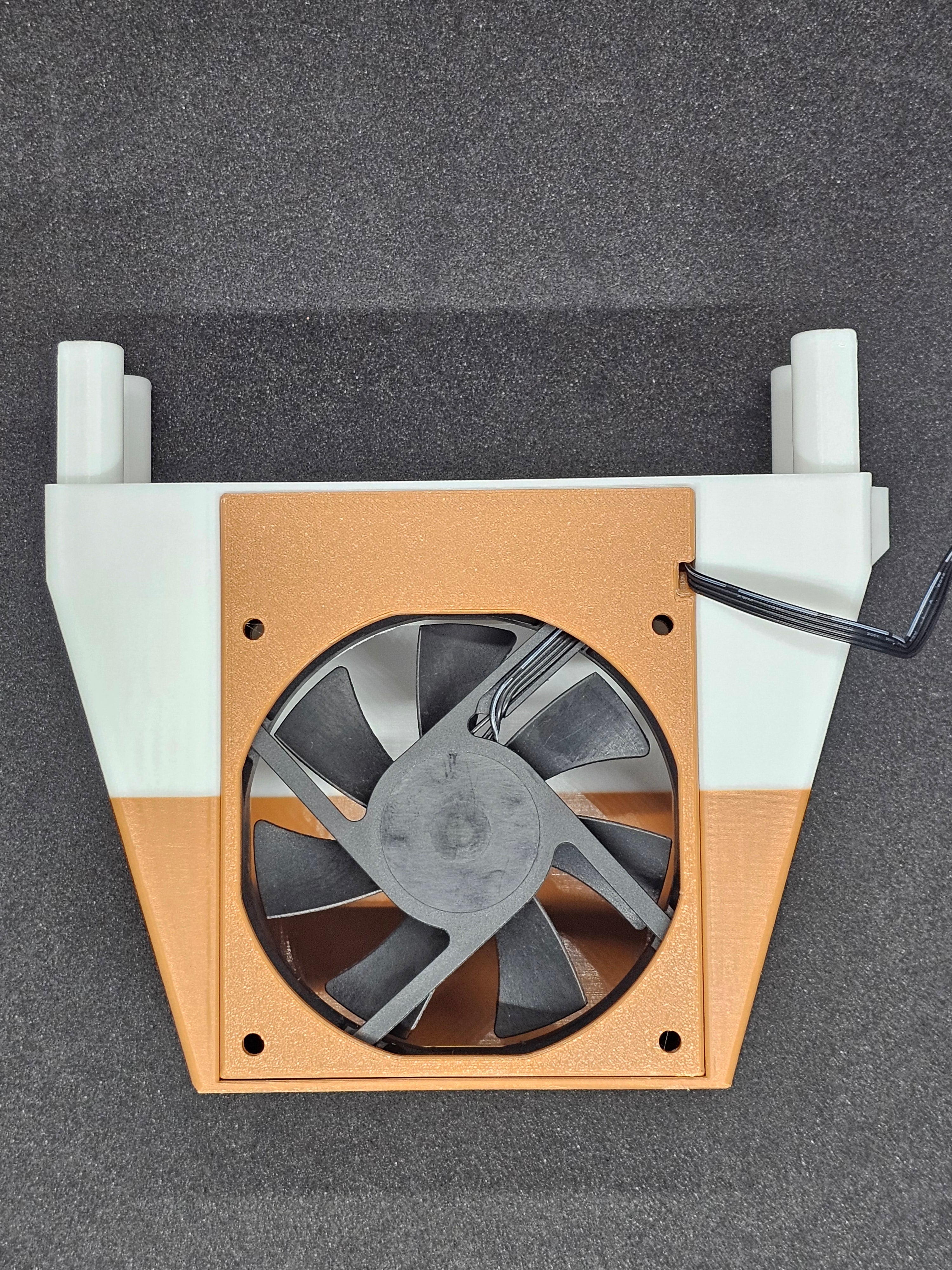

Module 1 — Active Air Filtration
-

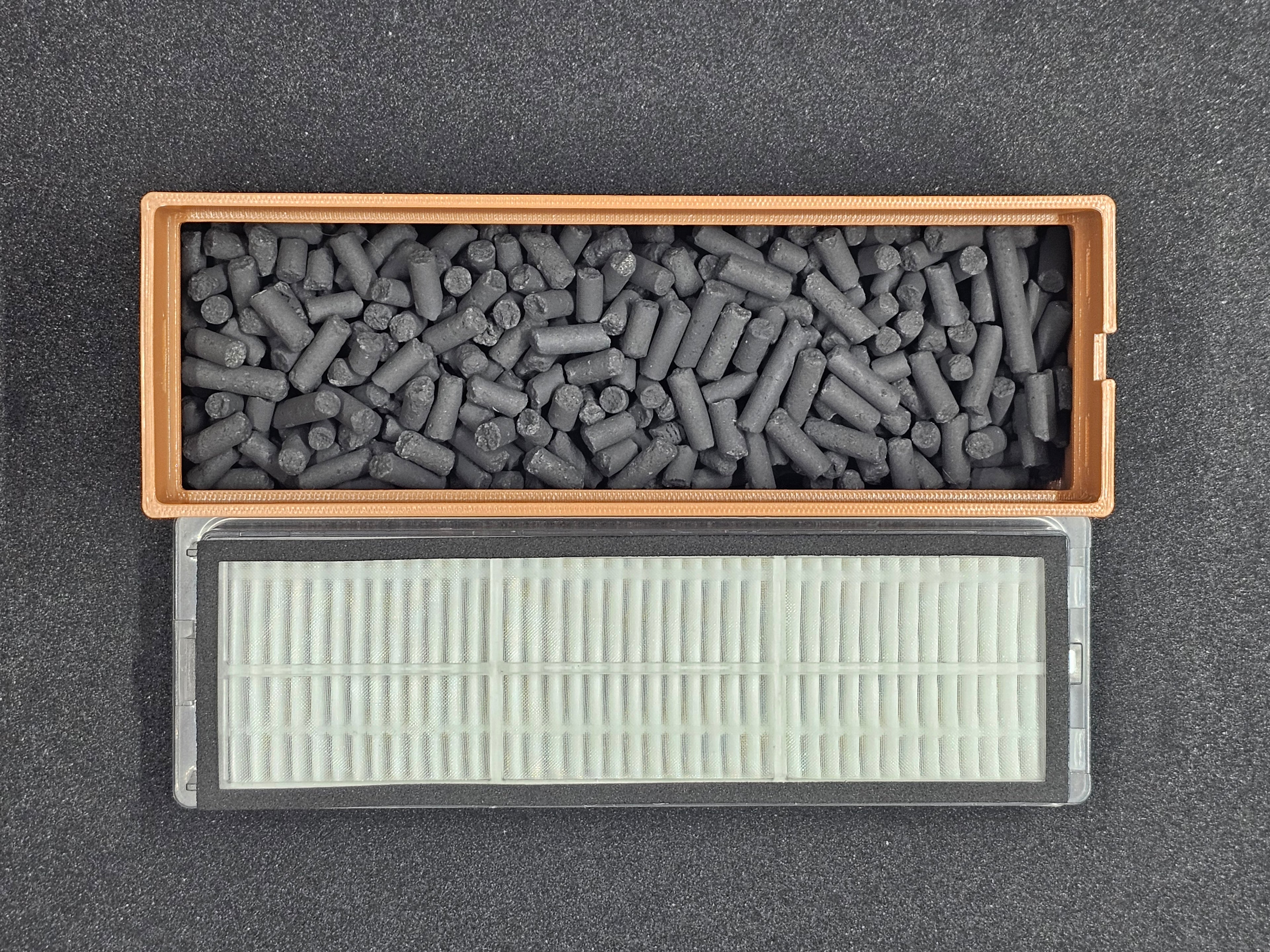

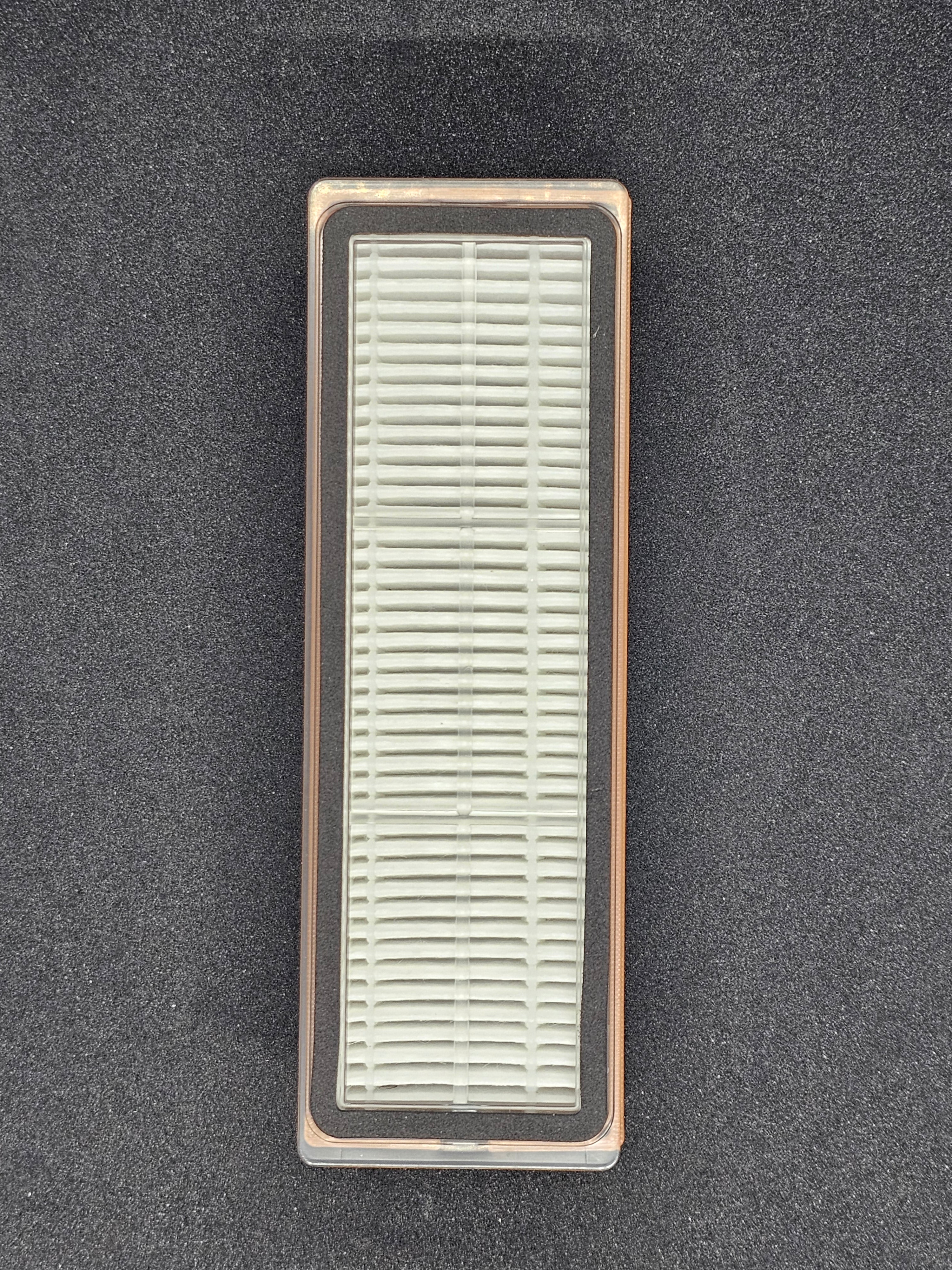

Filter: 15 mm HEPA
-
Adsorbent: Activated charcoal chamber (charcoal pellets not included)
-

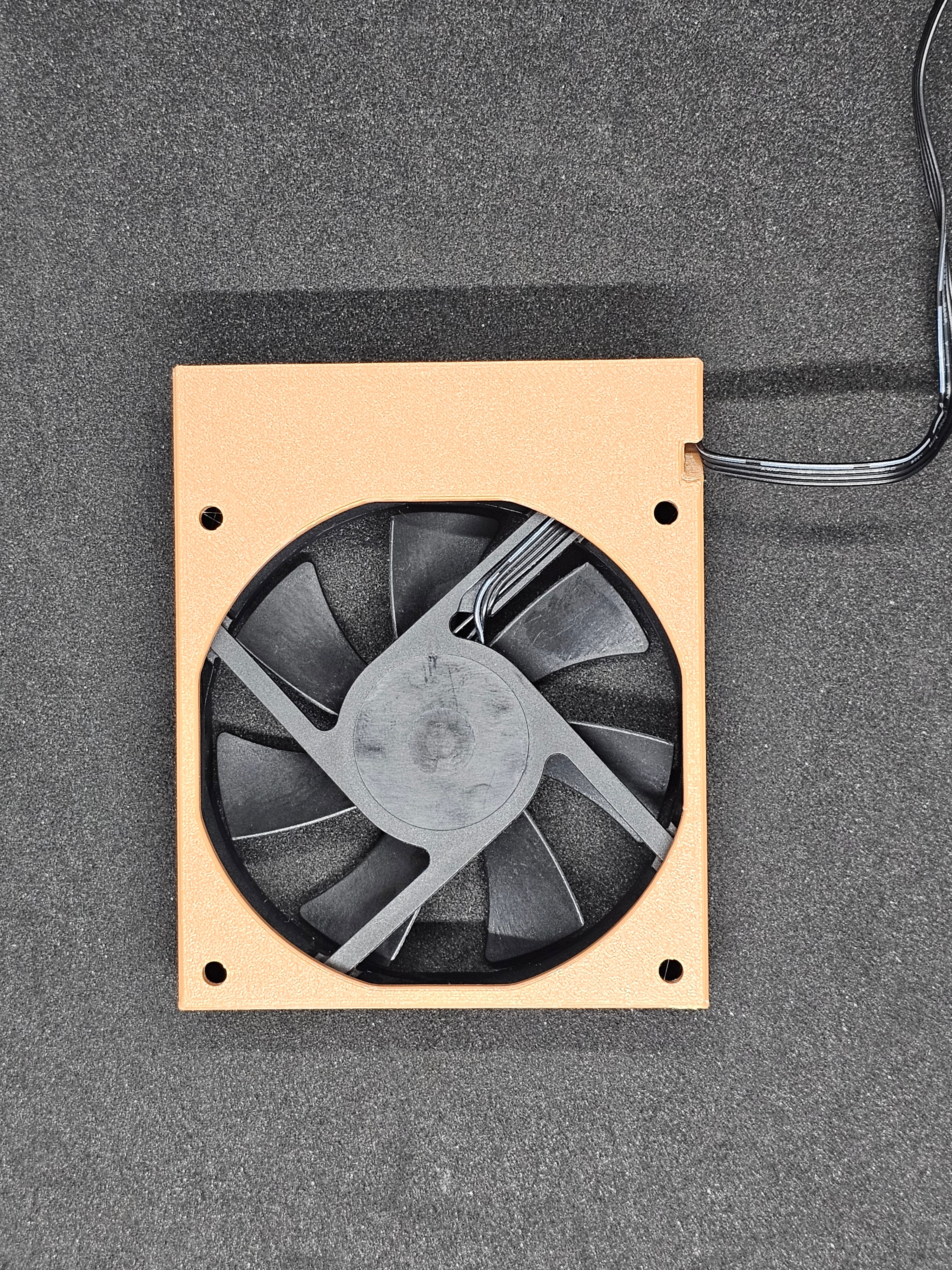

Fan: 80 × 80 × 15 mm PWM 4 pin fan (2.5 mmH₂O static pressure, 29 CFM)
-
Power/Speed: 12 V, 0.15 A | 3,000 RPM | Hydraulic Bearing
-
Noise: 34.5 dB(A)

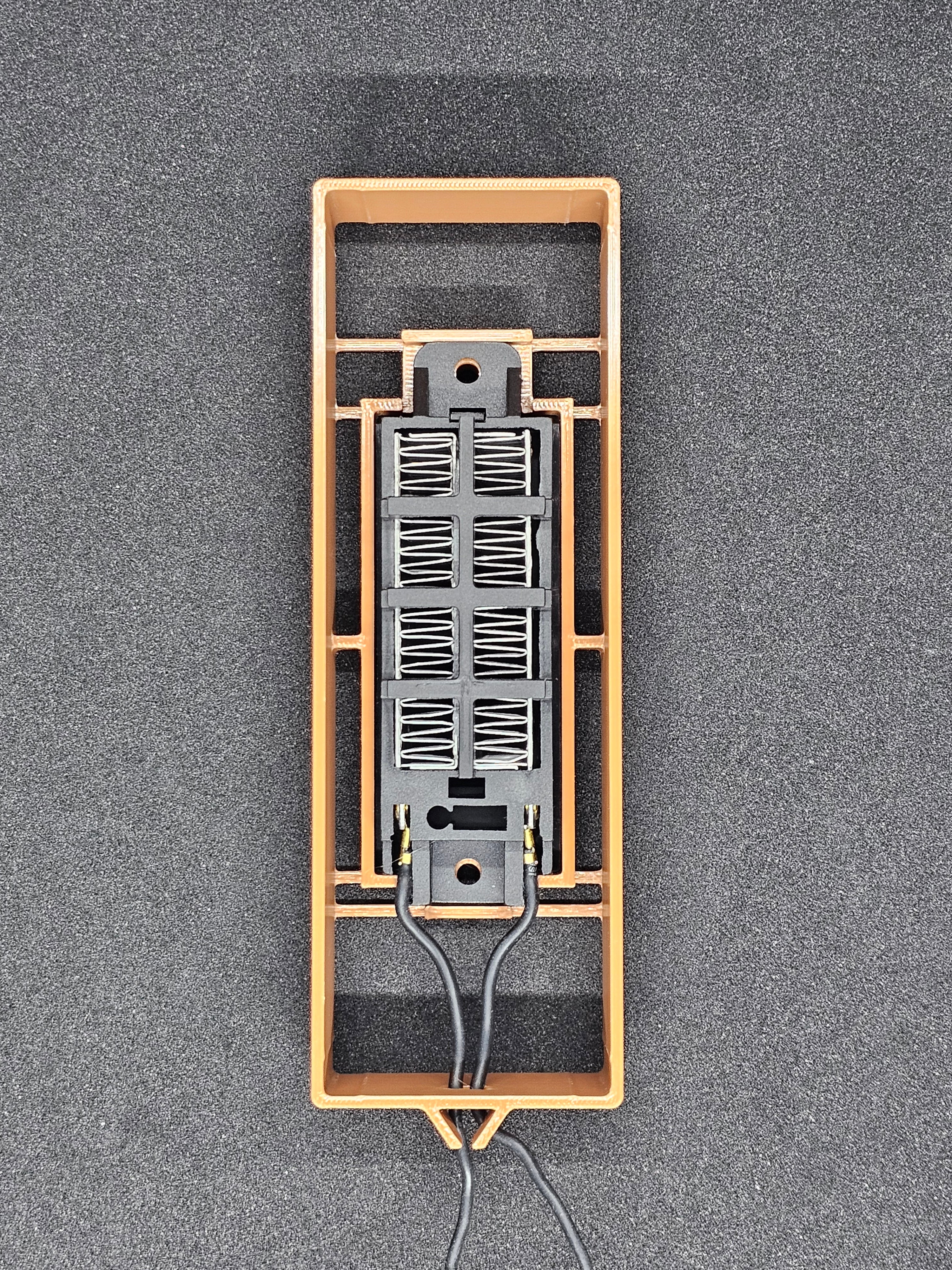

Module 2 — Chamber Heating
-

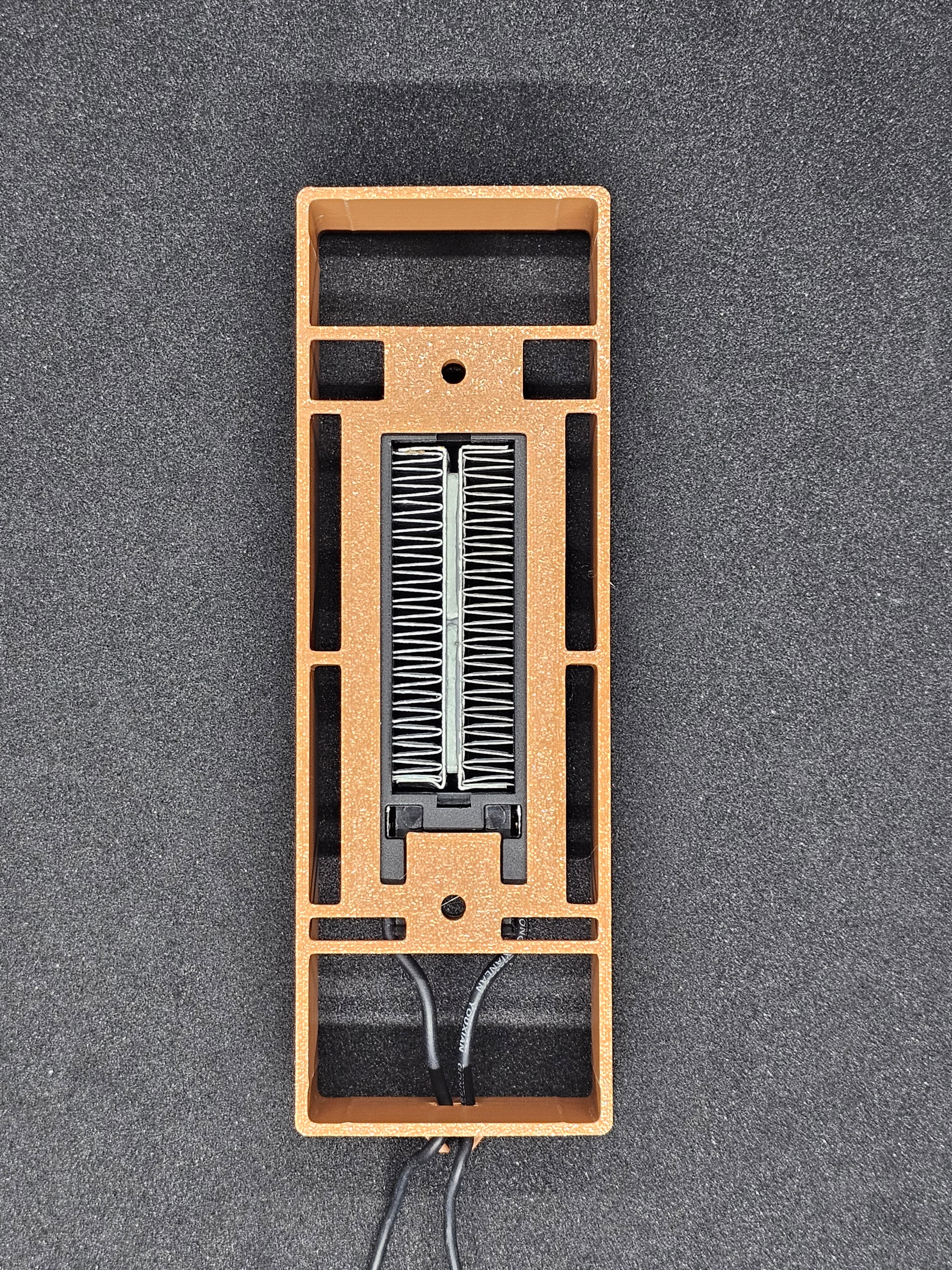

Heater Type: PTC Ceramic
-
Power / Voltage: 200 W / 24 V
-
Power Supply: Dedicated 24 V / 10 A power supply included in the ki)

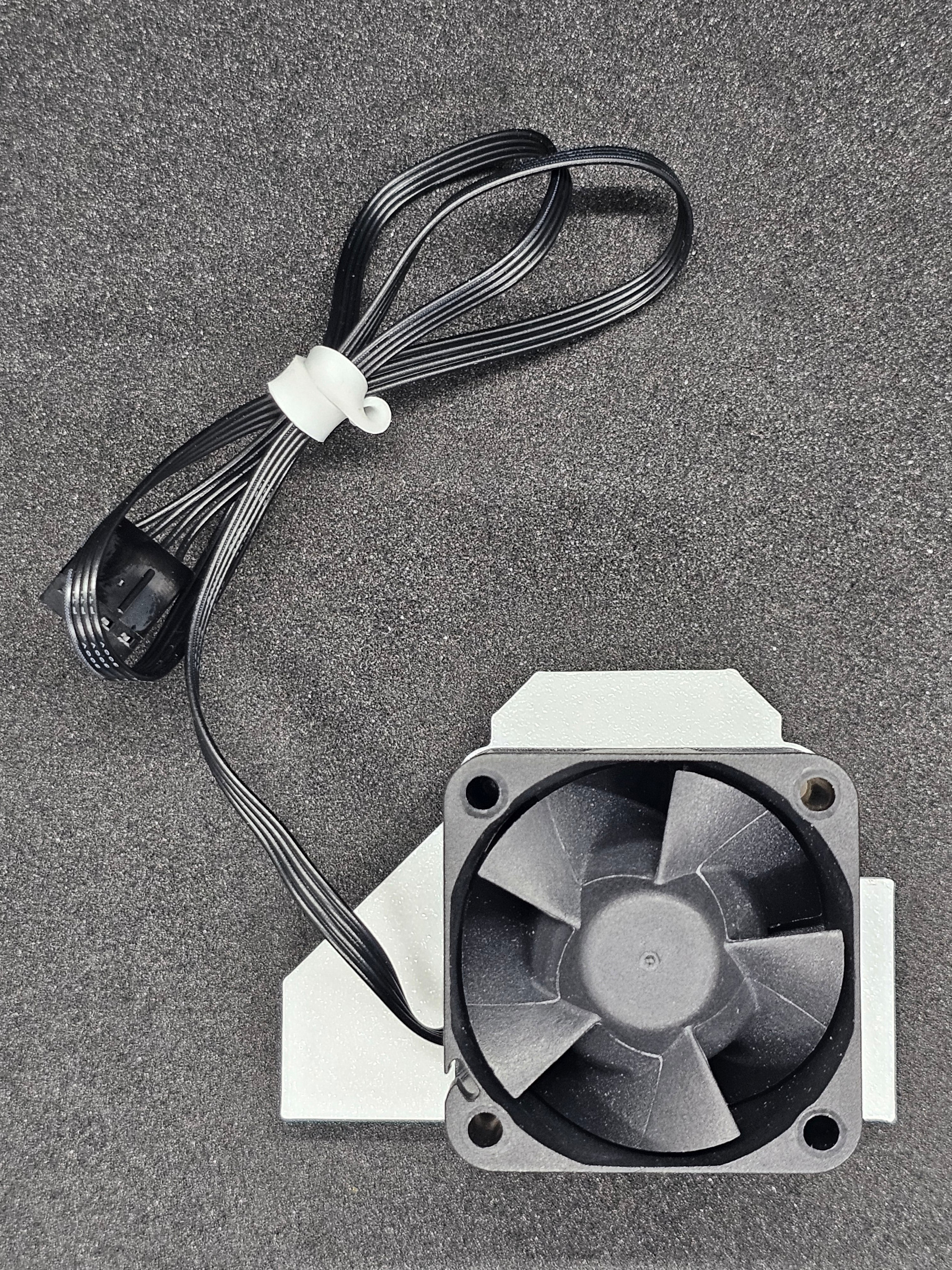

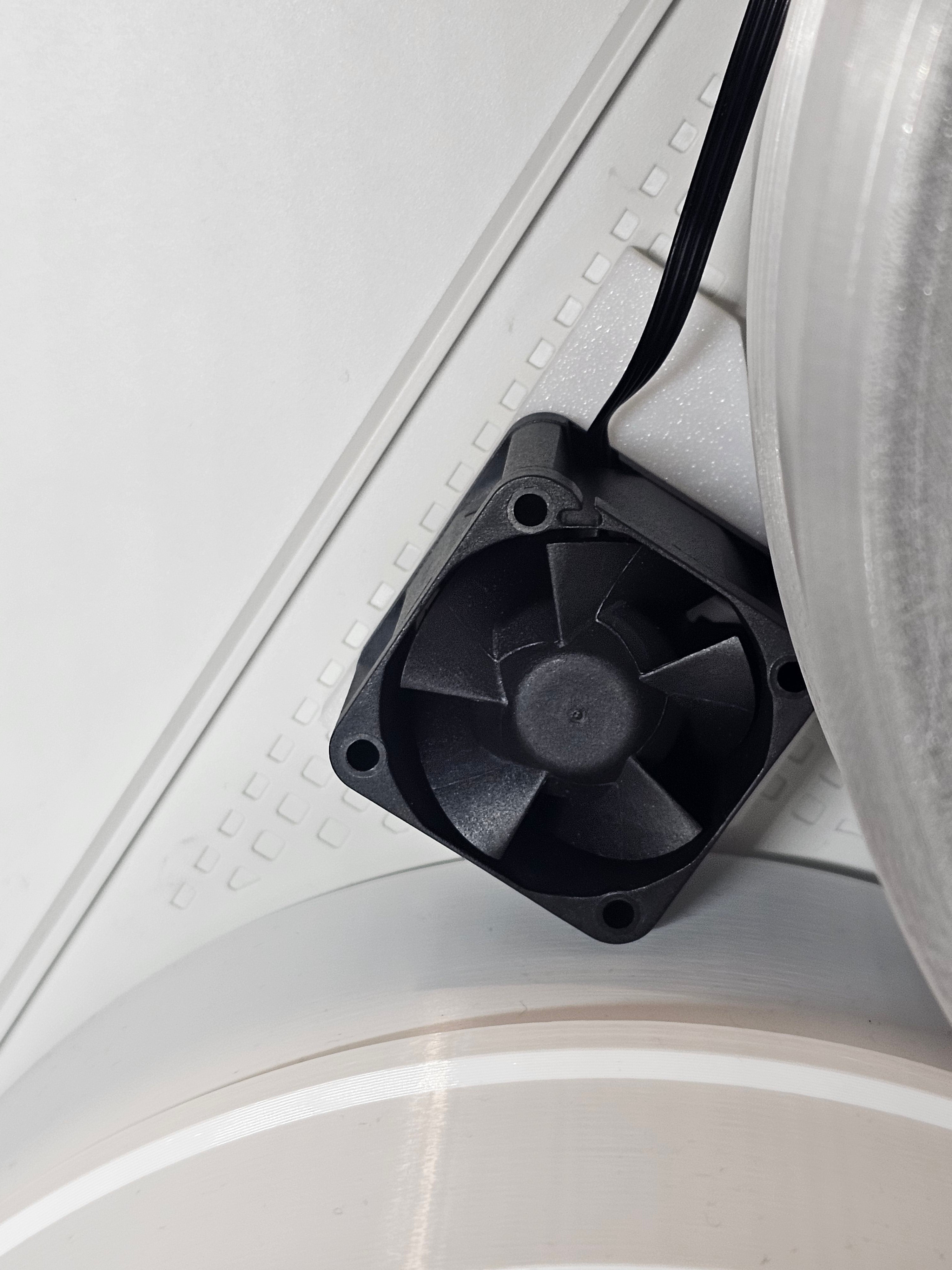

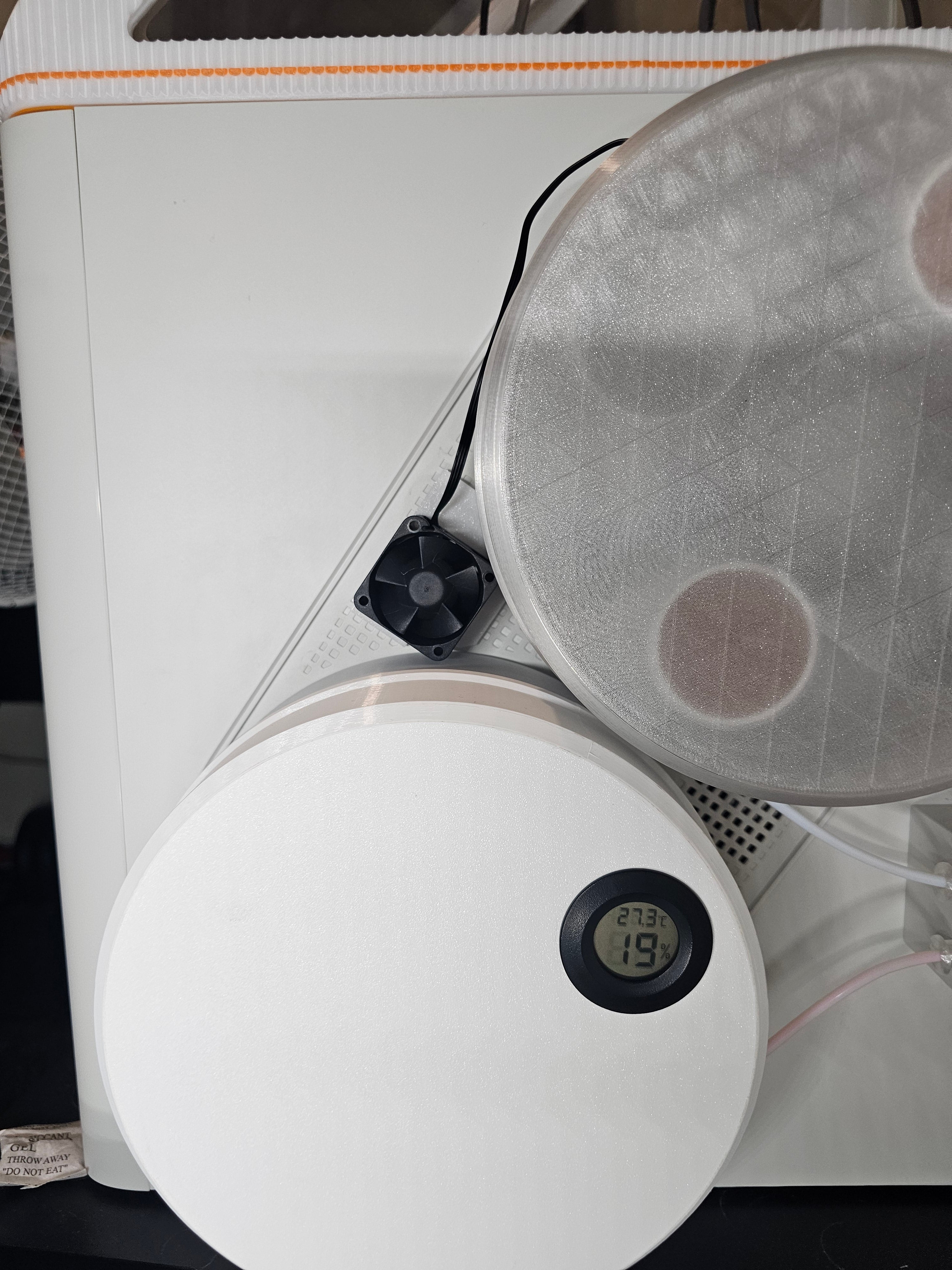

Module 3 — External Motherboard Cooling
-
Fan: 40 × 40 × 28 mm PWM static pressure 4 pin fan (4.2 mmH₂O static pressure, 7.1 CFM)
-
Power/Speed: 12 V, 1.2 W | 6000 RPM | Dual Ball Bearings
-
Noise: 20 - 25 dB(A)
System Control
-
Interface: Klipper (macro available)
-
Trigger: Nozzle temperature threshold (Default: 50 °C)
-
Power (Modules 1 & 3): Powered via Snapmaker U1 6-pin port
-
Power (Module 2): Powered via dedicated external supply but triggered by Klipper
What’s Included in the Kit
- 1× 80 mm PWM fan (Air Filtration)
- 1× 40 mm PWM fan (Motherboard Cooling)
- 1× 15 mm thick HEPA filter

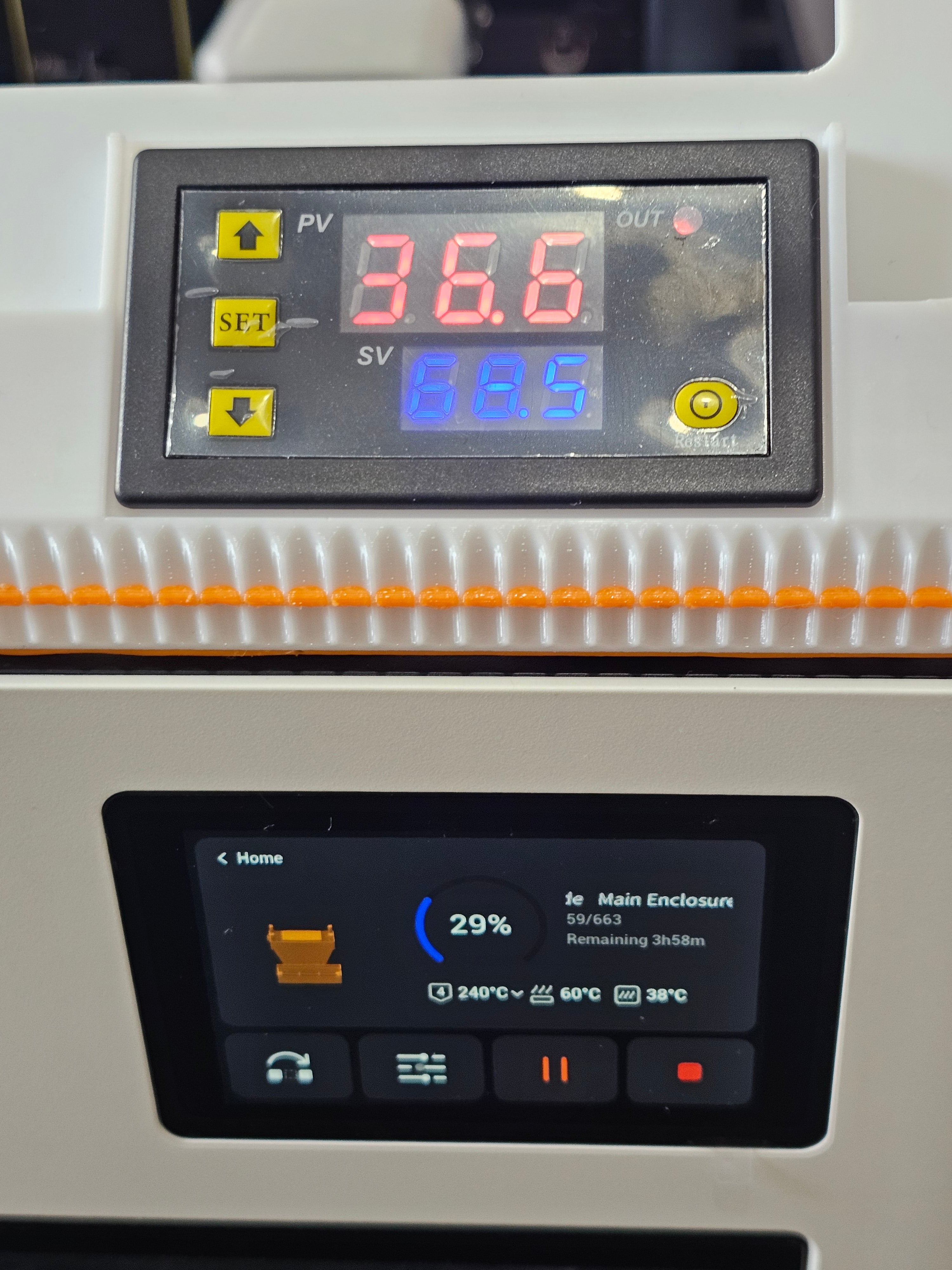

- 1× Digital temperature controller
- 1× 200 W PTC heater + Dedicated Power Supply

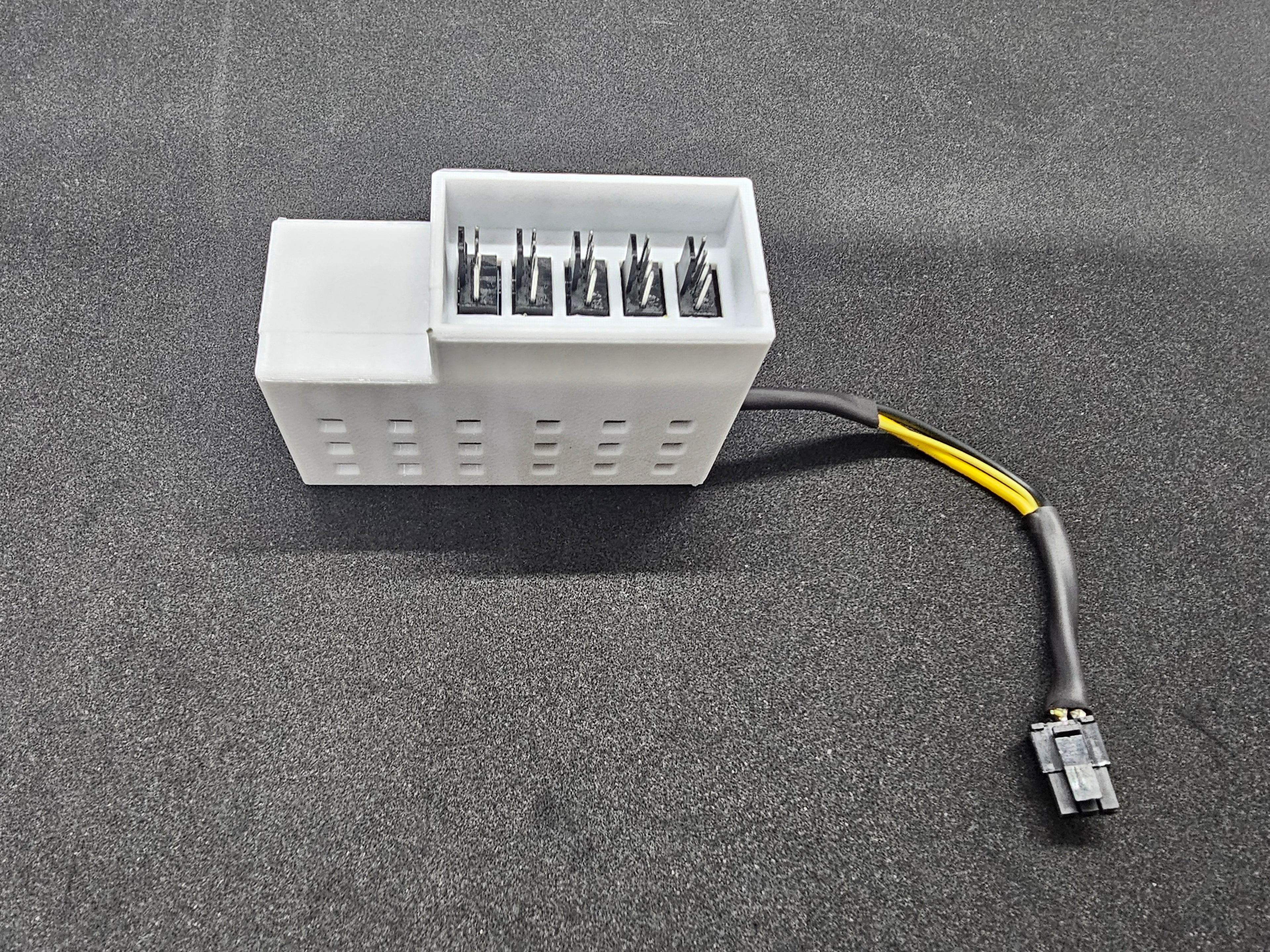

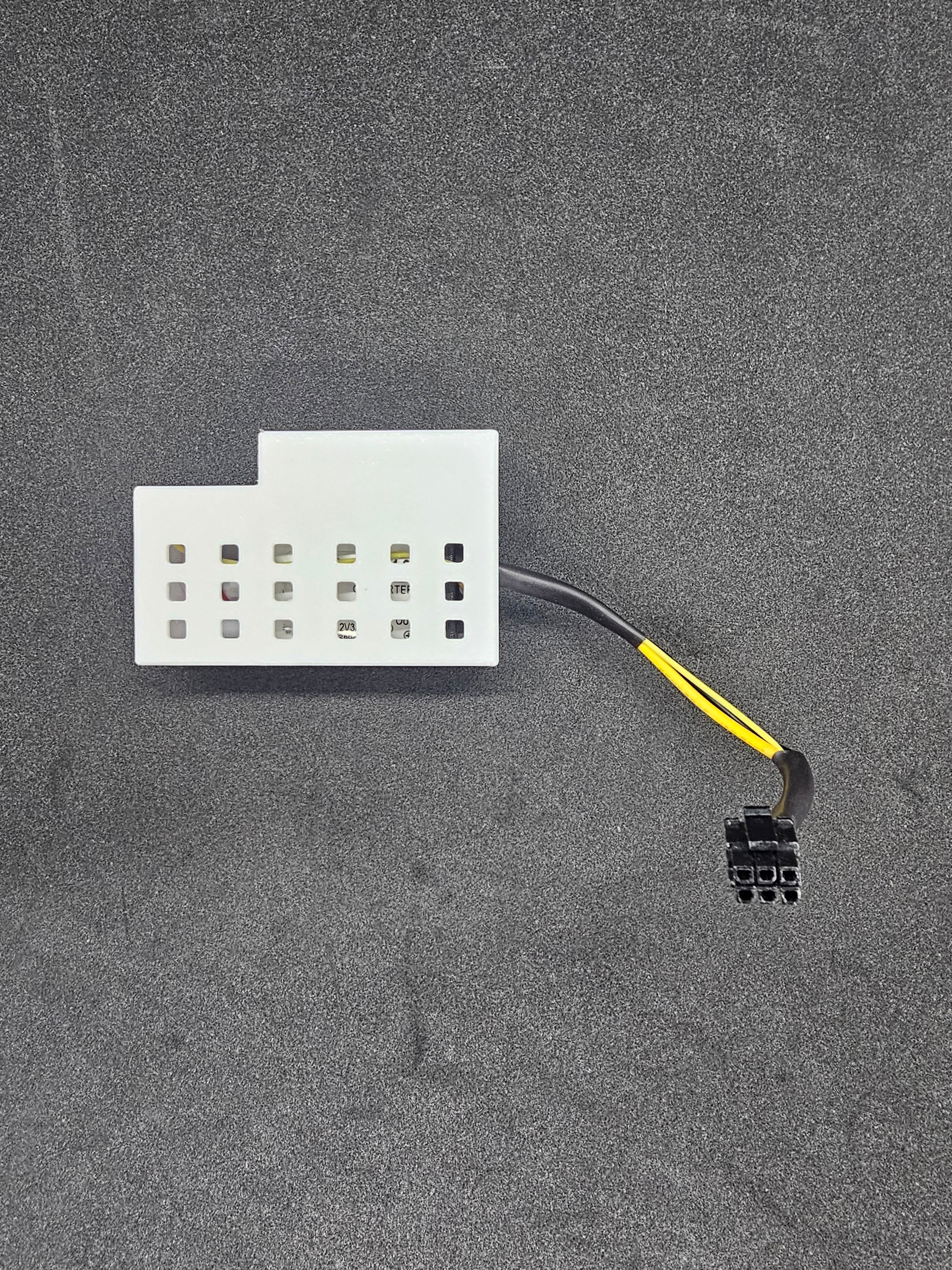

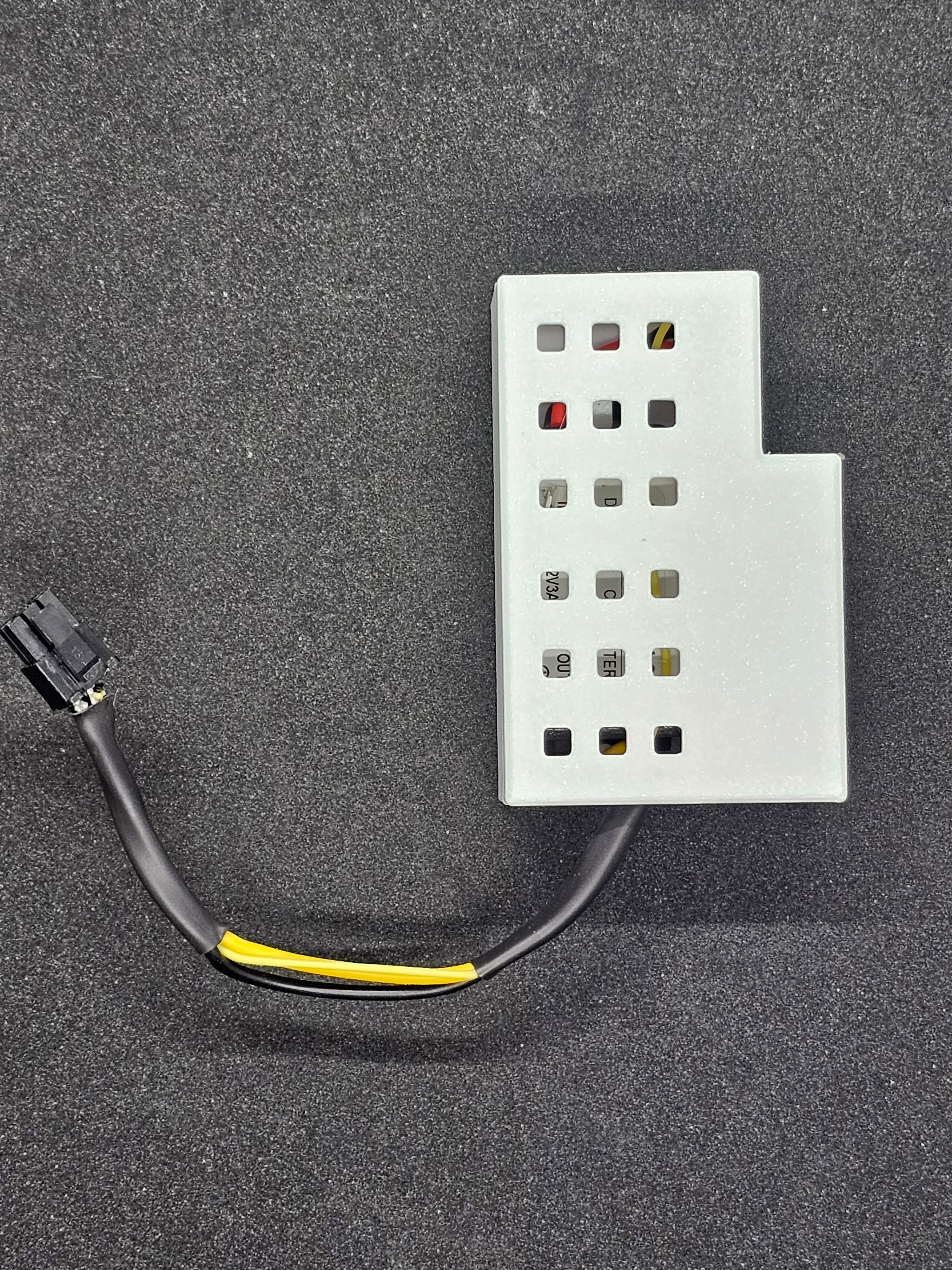

- 1× 5-channel PWM fan hub
- 1× 24 V to 12 V step-down converter
- All required wires & connectors (including 6-pin 2×3P connector)
- Comprehensive Assembly Guide (Online copy)
- Ready-to-go Klipper configuration code (Available here)
- STEP files for all 3D printed structural components (Available on Makerworld and Printables).

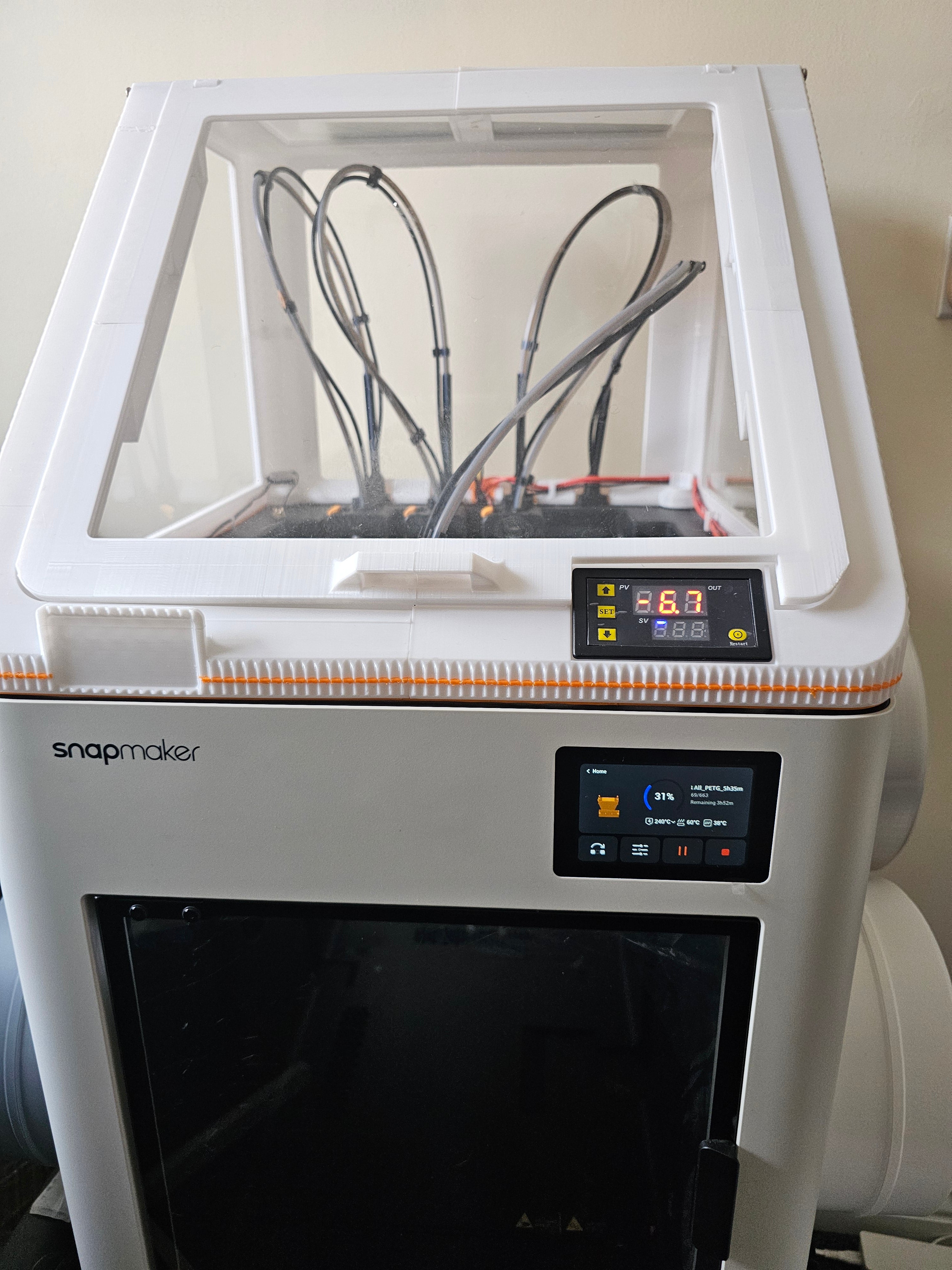

⚠️ IMPORTANT NOTE: To fully utilise this system, a printer top cover enclosure is required. You can download my remixed, optimized version of Alexis Melo’s “Ikealler” enclosure for free to print yourself and complete the setup!
